Sawyer Mfg. Co. · SKU 273-15Guided 15 Ton Strap Bender
The toolSee any photo full size

Weld coupon testing,
field or shop.

A 15 ton guided bend tester that works horizontally or vertically, ships with an ASME 3/8 inch die and plunger and a steel carrying case, and takes optional sets to meet whichever code you work to.

For weld coupon testing, horizontal or vertical use
Ships with an ASME 3/8 inch die and plunger plus a steel carrying case - Hydraulic component color and manufacturer may vary
Optional die and plunger sets to meet ASME 1/4, 3/8, 1/2 or API 1104
  1. How it runs
  2. 1Fit the die for your code
  3. 2Horizontal or vertical
  4. 3Back in the steel case
30-day returns
Sawyer Mfg. Co.
Shipping at checkout

Customer reviews

Used this on the job? Rate it.

Takes 30 seconds

Your rating

Tap a star, then tell other welders how it held up.

✓ No account needed✓ Your email is never shown

In practice

How it runs
on the job

Set

Fit the die for your code

ASME 3/8 inch is standard; the others are optional sets.

Bend

Horizontal or vertical

Whichever way the space lets you work.

Pack

Back in the steel case

It is built to go to the job, not stay at the bench.

15ton capacity
4code die options
The comparison

Next to
the usual answer

What matters

Guided 15 Ton Strap Bender

The usual answer
Location
Field or shop
Shop only
Orientation
Horizontal or vertical
One
Codes
ASME and API 1104
One code
Transport
Steel case included
Sold separately
Who buys it

Where it earns
its keep

Field inspection

It travels in a steel case, which is the whole design brief.

Welding schools

Guided bend testing is the qualification everyone starts with.

Questions people actually ask

Which die comes with it?

An ASME 3/8 inch die and plunger set. Optional sets cover ASME 1/4, ASME 1/2 and API 1104. Specify the code you need in Special Instructions.

Can it be used vertically?

Yes. Horizontal or vertical use.

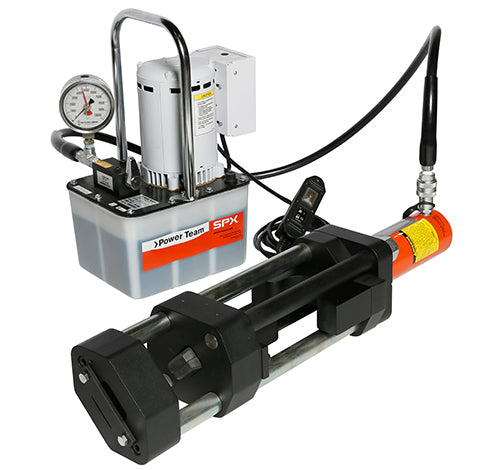

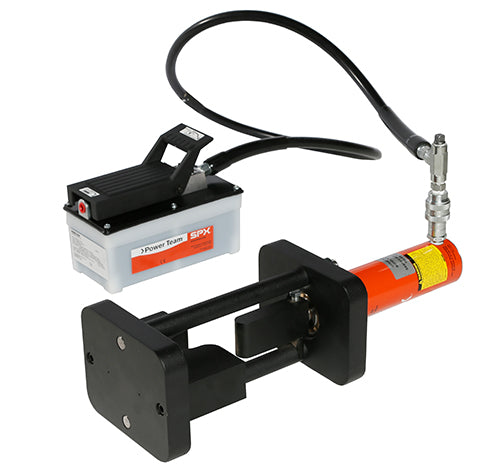

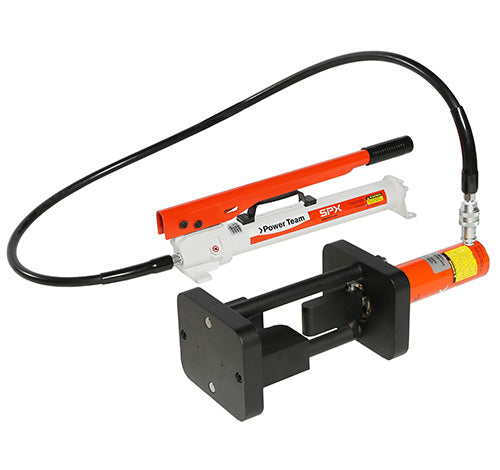

What pump options are there?

Hand, electric or pneumatic, or without a pump.

Bend the coupon.
Sign the qualification.

Guided 15 Ton Strap Bender, SKU 273-15.

Add to cart

30-day returns, unused and in the original packaging.
