Sawyer Mfg. Co.

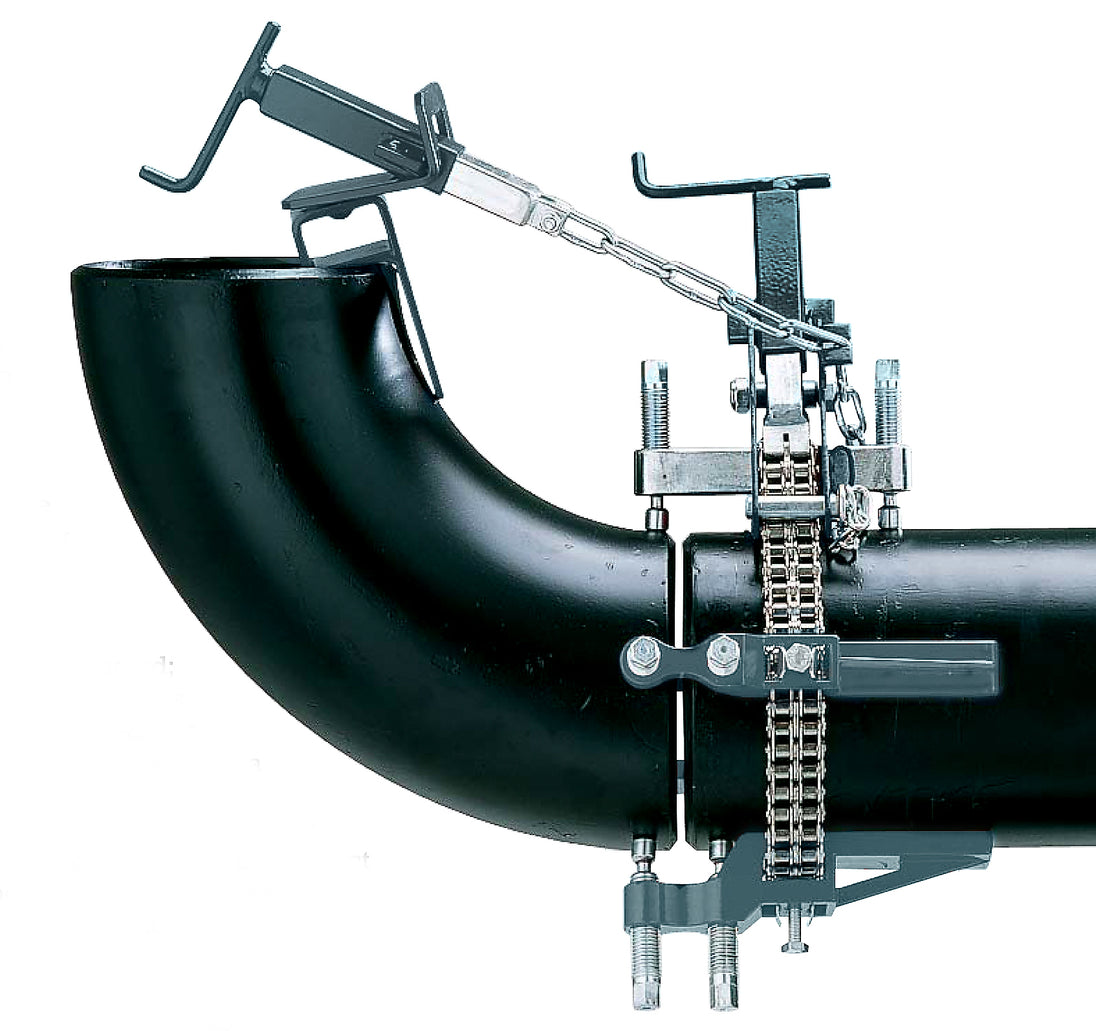

Chain Clamp

$ 1,260.00

Sawyer Mfg. Co.

Chain Clamp

$ 1,260.00

    • One chain clamp allows a wide range of fit Pipe can be welded with clamp in place.
    • Safely permits elbows, tees and other fittings to be held.
    • Reforms Schedule 40 pipe and aligns pipe up to Schedule 80.
    • Available in steel and stainless steel
    • Our Pipe Clamps color coded for quick identification (Red=Steel Pipe Clamps; Green=Stainless Pipe Clamps).
    • Zinc plated and powder coated.
    • May be used as a Single Jackscrew Pipe Clamp by backing one jackscrew off the clamp.
    • Alignment within 1/64” for reforming of both the internal and external diameters of the pipe.
  • Part Number Description # Jack Bars lbs kg in mm
    Double Jackscrew
    124H-0420 DJ CC, 4″-20″ 7 50 22.7 30x10x15 762x254x381
    124H-0420SS DJ CC, 4″-20″ – SS 7 50 22.7 30x10x15 762x254x381
    124H-1036 DJ CC, 10-36″ 8 100 45.4 30x10x15 762x254x381
    124H-1036SS DJ CC, 10-36″ SS 8 100 45.4 30x10x15 762x254x381

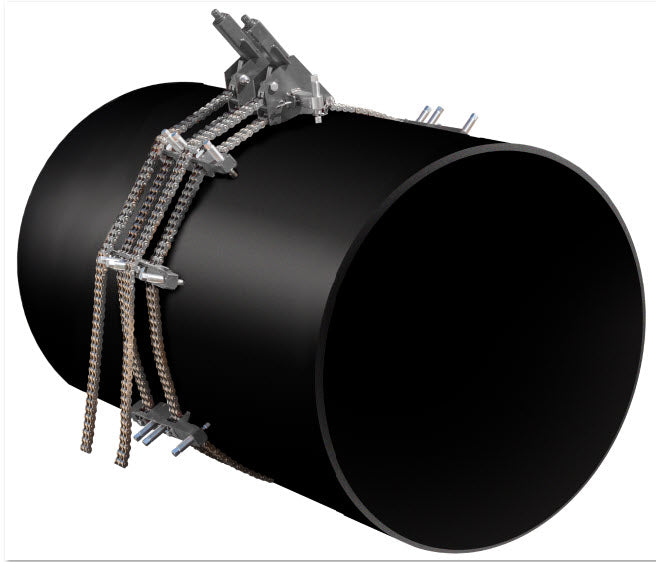

    Double Jackscrew & Double Chain
    124I-1072 DJ/Double CC, 10-72″ 20 305 138.3 40x20x20 1016x508x508
    124I-1072SS DJ/Double CC, 10-72″ – SS 20 305 138.3 40x20x20 1016x508x508
    Special Other Sizes
