Sawyer Mfg. Co.
Guided 55 Ton Bend and Tensile Tester
$ 15,820.00
Sawyer Mfg. Co.
Guided 55 Ton Bend and Tensile Tester
$ 15,820.00
-
FOR FIELD AND SHOP APPLICATIONS
- Both guided bend & tensile strength testing
-

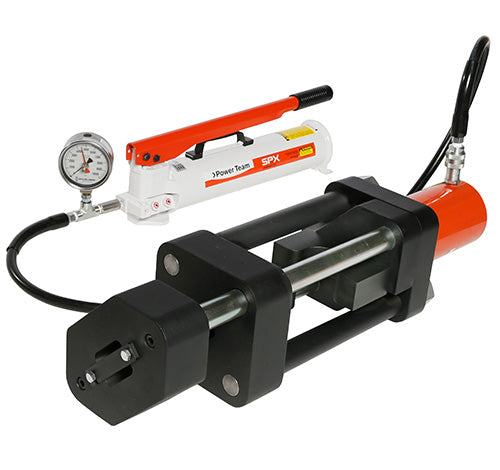

Comes standard with liquid-filled gauge with high level indicator, 2-Speed manual pump,
(1) Set of 1/4" - 1/2" Pulling Jaws, (1) ASME 3/8" Die and Plunger Set, (1) Steel carrying case - Optional die and plunger sets available to meet code; additional sizes of Pulling Jaws available

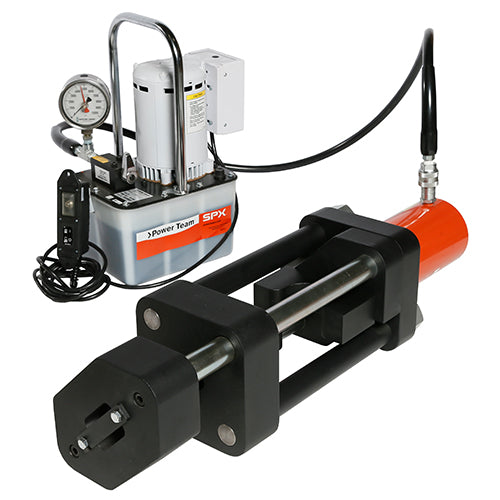

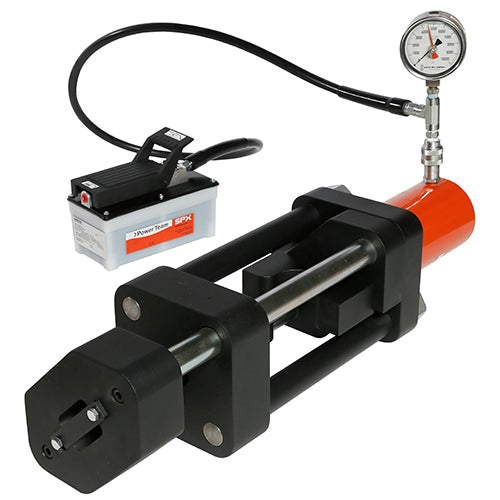

- Optional Accessories: Electric Pump, Foot Pump
- Please Specify Jaw Set: 0-1/4", 1/4"-1/2",1/2"-3/4", in SPECIAL INSTRUCTIONS
- Please Specify ASME 1/4", ASME 3/8", ASME 1/2" or API 1104 in SPECIAL INSTRUCTIONS
-
Part Number Description lbs kg in mm 273-15 Coupon Bending Machine – Hand Pump 125 56.7 32x10x16 813x254x407 273-15E Coupon Bending Machine – Electric Pump 150 68.0 32x10x16 813x254x407 273-15A Coupon Bending Machine – Pneumatic Pump 150 68.0 32x10x16 813x254x407 4FF-7ASMExxx ASME Die/Plunger for 273-15 (.250 / .375 / .500) Call for Weight Call for Dimensions SPECIAL Special Die / Plunger Sets Call for Weight Call for Dimensions 13R-15 Carrying Case for 15T Unit Call for Weight Call for Dimensions
