Sawyer Mfg. Co.

Pair of Pipe Hooks

$ 228.00

Sawyer Mfg. Co.

Pair of Pipe Hooks

$ 228.00

    • Extra thick T1 steel on A & B bodies

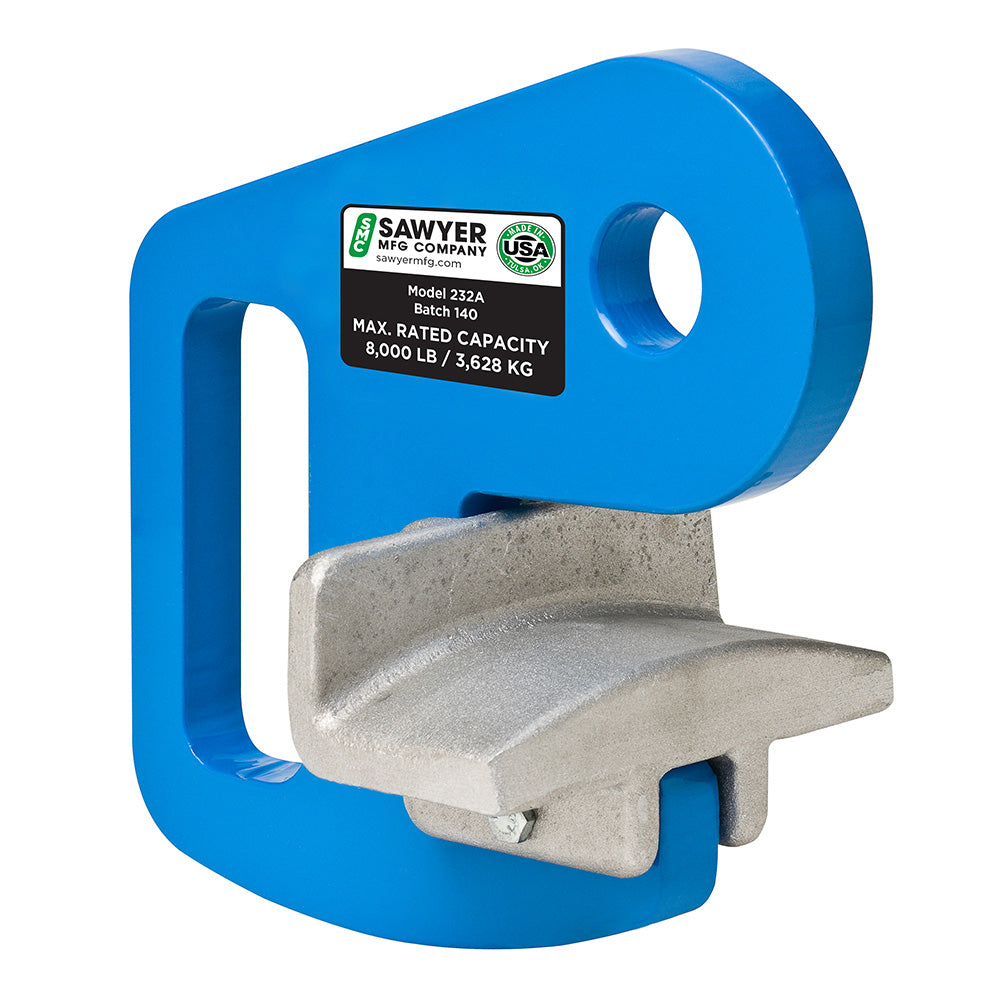

    • Integrated handle for greater ease (Model 232 & 233)
    • Reduced pinch points for increased safety
    • Design based on ASME B30.20
    • Interchangeable cast aluminum inserts
    • Wide Mouth versions provide an additional 1" clearance for heavy wall pipe (Model 233)
    • Load capacity – per hook:
      • A Bodies – 8,000 LBS
      • B Bodies – 10,000 LBS

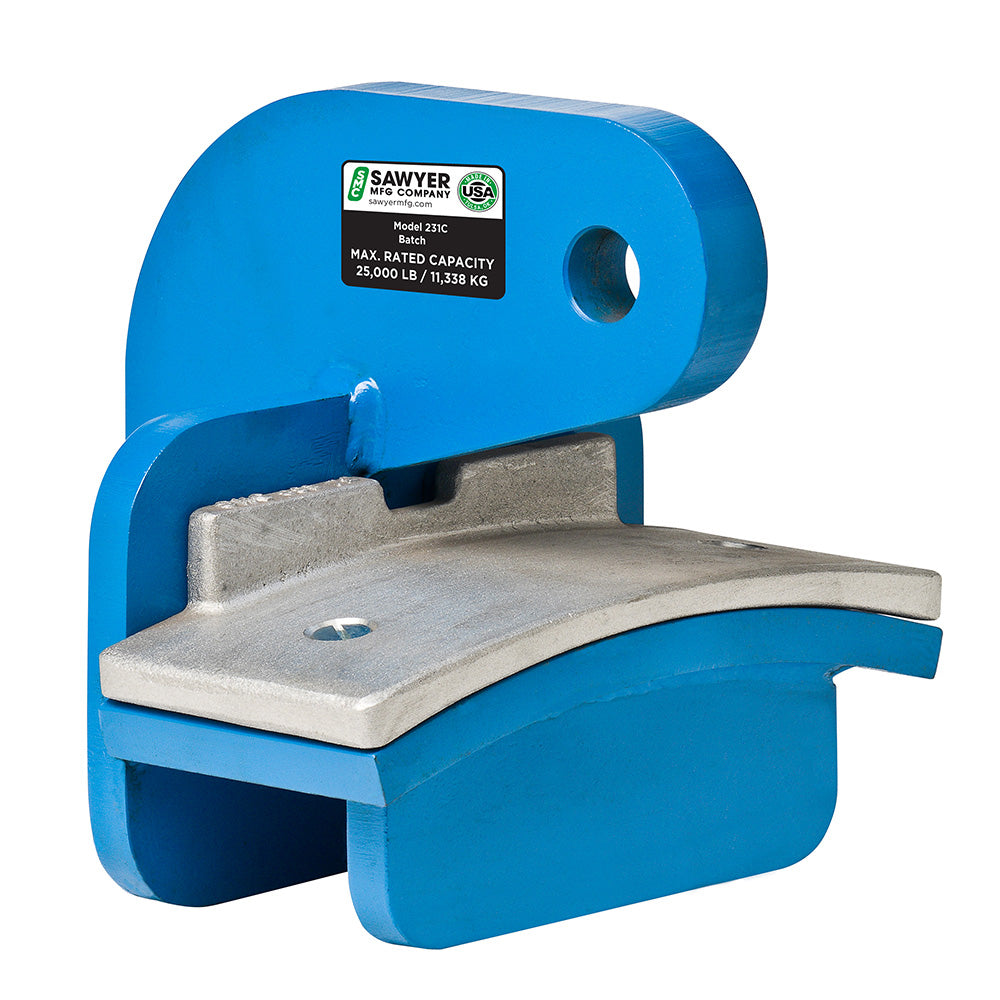

      • C Bodies – 25,000 LBS

    .

  • Part Number Description lbs kg in mm
    232A-6 Handle Hooks – 3 – 6″ 17 7.7 13x13x10 330x330x254
    232A-12 Handle Hooks – 8 – 12″ 18 8.2 13x13x10 330x330x254
    232A-18 Handle Hooks – 14 – 18″ 19 8.6 13x13x10 330x330x254
    232A-24 Handle Hooks – 20 – 24″ 20 9.1 13x13x15 330x330x381
    232B-30 Handle Hooks – 26 – 30″ 21 9.5 13x13x15 330x330x381
    232B-36 Handle Hooks – 32 – 36″ 22 10.0 13x13x15 330x330x381
    232B-42 Handle Hooks – 38 – 42″ 23 10.4 13x13x15 330x330x381

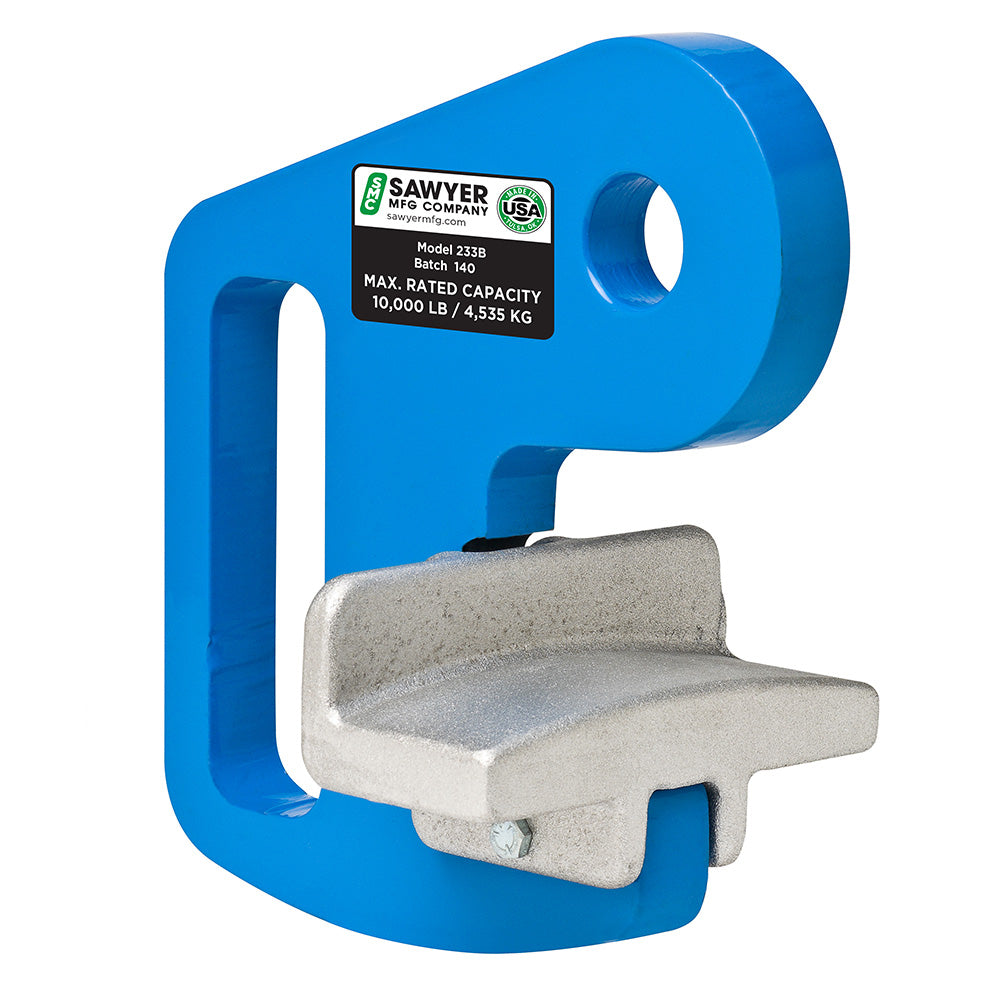

    Wide Mouth Handle Hooks

    Part Number Description lbs kg in mm
    233A-6 Wide Mouth Handle Hooks – 3 – 6″ 17 7.7 13x13x10 330x330x254
    233A-12 Wide Mouth Handle Hooks – 8 – 12″ 18 8.2 13x13x10 330x330x254
    233A-18 Wide Mouth Handle Hooks – 14 – 18″ 19 8.6 13x13x10 330x330x254
    233A-24 Wide Mouth Handle Hooks – 20 – 24″ 20 9.1 13x13x15 330x330x381
    233B-30 Wide Mouth Handle Hooks – 26 – 30″ 21 9.5 13x13x15 330x330x381
    233B-36 Wide Mouth Handle Hooks – 32 – 36″ 22 10.0 13x13x15 330x330x381
    233B-42 Wide Mouth Handle Hooks – 38 – 42″ 23 10.4 13x13x15 330x330x381
