Sawyer Mfg. Co.

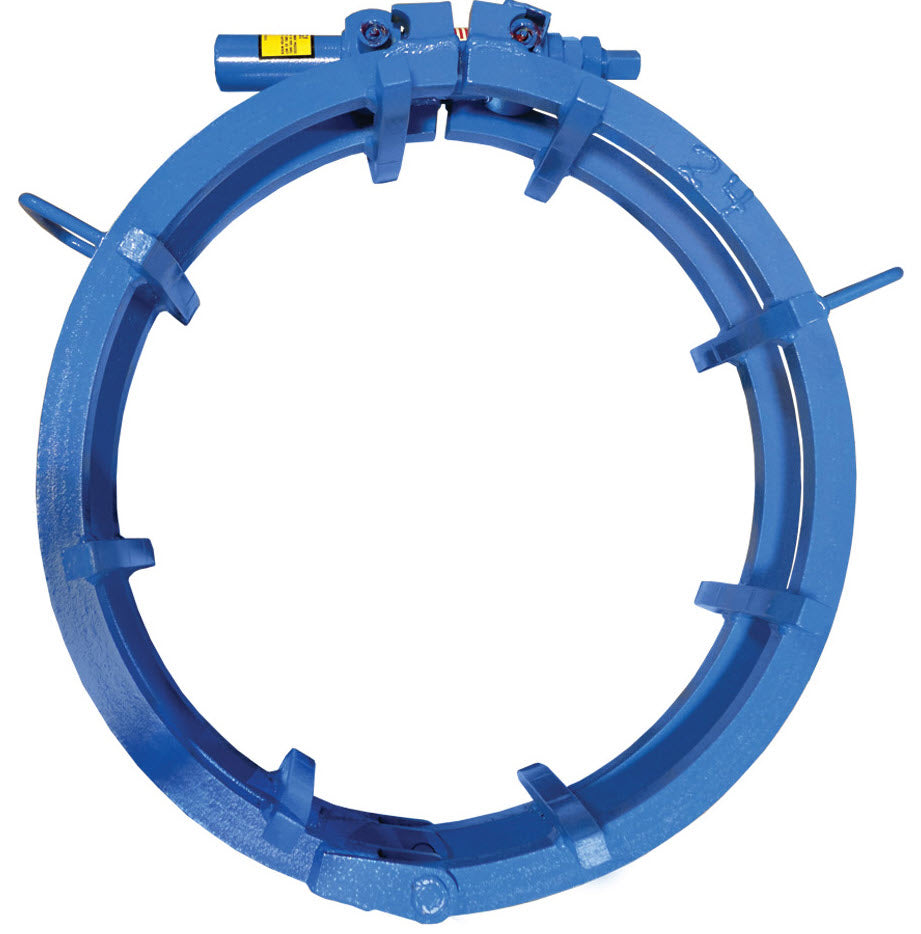

Ratchet Cage Clamp

$ 1,280.00

Sawyer Mfg. Co.

Ratchet Cage Clamp

$ 1,280.00

    • Available in sizes 6" - 60"
    • Precision-cut acme thread design insures great strength and easy operation
    • Operational mechanism is enclosed in protective housing to eliminate dirt contamination
    • “Tack” design features flat cross bars
    • “No Tack” design features arched cross bars for 360° welding access without removing clamp
    • Available with optional stainless steel contact points
  • Part Number Description lbs kg in mm
    255R-6 Cage Clamp, Ratchet, Tack – 6″ 40.00 18.14 12x12x12 305x305x305
    255R-8 Cage Clamp, Ratchet, Tack – 8″ 41.00 18.60 18x18x18 458x458x458
    255R-10 Cage Clamp, Ratchet, Tack – 10″ 60.00 27.22 18x18x18 458x458x458
    255R-12 Cage Clamp, Ratchet, Tack – 12″ 70.00 31.75 24x24x24 610x610x610
    255R-14 Cage Clamp, Ratchet, Tack – 14″ 80.00 36.29 24x24x24 610x610x610
    255R-16 Cage Clamp, Ratchet, Tack – 16″ 106.00 48.08 24x24x24 610x610x610
    255R-18 Cage Clamp, Ratchet, Tack – 18″ 110.00 49.90 32x32x24 813x813x610
    255R-20 Cage Clamp, Ratchet, Tack – 20″ 118.00 53.52 32x32x24 813x813x610
    255R-22 Cage Clamp, Ratchet, Tack – 22″ 125.00 56.70 32x32x24 813x813x610
    255R-24 Cage Clamp, Ratchet, Tack – 24″ 128.00 58.06 36x36x24 915x915x610
    255R-26 Cage Clamp, Ratchet, Tack – 26″ 140.00 63.50 36x36x24 915x915x610
    255R-28 Cage Clamp, Ratchet, Tack – 28″ 145.00 65.77 36x36x24 915x915x610
    255R-30 Cage Clamp, Ratchet, Tack – 30″ 151.00 68.49 42x42x24 1067x1067x610
    255R-31 Cage Clamp, Ratchet, Tack – 31″ 156.00 70.76 42x42x24 1067x1067x610
    255R-32 Cage Clamp, Ratchet, Tack – 32″ 162.00 73.48 42x42x24 1067x1067x610
    255R-33 Cage Clamp, Ratchet, Tack – 33″ 165.00 74.84 48x48x24 1220x1220x610
    255R-34 Cage Clamp, Ratchet, Tack – 34″ 169.00 76.66 48x48x24 1220x1220x610
    255R-36 Cage Clamp, Ratchet, Tack – 36″ 172.00 78.02 48x48x24 1220x1220x610
    255R-38 Cage Clamp, Ratchet, Tack – 38″ 255.00 115.67 50x50x24 1270x1270x610
    255R-40 Cage Clamp, Ratchet, Tack – 40″ 268.00 121.56 50x50x24 1270x1270x610
    255R-42 Cage Clamp, Ratchet, Tack – 42″ 275.00 124.74 60x60x24 1524x1524x610
    255R-44 Cage Clamp, Ratchet, Tack – 44″ 282.00 127.91 60x60x24 1524x1524x610
    255R-46 Cage Clamp, Ratchet, Tack – 46″ 290.00 131.54 60x60x24 1524x1524x610
    255R-48 Cage Clamp, Ratchet, Tack – 48″ 300.00 136.08 60x60x24 1524x1524x610
    255R-50 Cage Clamp, Ratchet, Tack – 50″ 320.00 145.15 72x72x24 1829x1829x610
    255R-52 Cage Clamp, Ratchet, Tack – 52″ 325.00 147.42 72x72x24 1829x1829x610
    255R-54 Cage Clamp, Ratchet, Tack – 54″ 331.00 150.14 72x72x24 1829x1829x610
    255R-56 Cage Clamp, Ratchet, Tack – 56″ 356.00 161.48 72x72x24 1829x1829x610
    255R-58 Cage Clamp, Ratchet, Tack – 58″ 360.00 163.29 72x72x24 1829x1829x610
    255R-60 Cage Clamp, Ratchet, Tack – 60″ 372.00 168.74 72x72x24 1829x1829x610
    Special Stainless Steel and Special Sizes 0.00 0.00 Call for Dimensions Call for Dimensions
